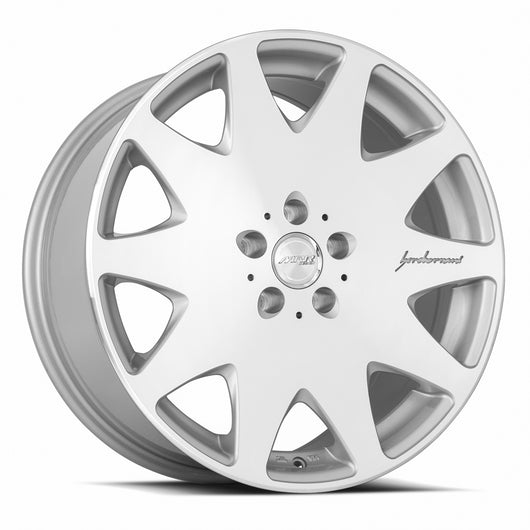

The MRR HR3 is a flow forged aftermarket wheel by MRR Wheels with a concave, VIP style face. It comes in Silver Machine Face, in 19, 20 and 22 inch diameters from 8.5 to 10.5 inches wide, drilled for 5x108, 5x112, 5x114.3 and 5x120 bolt patterns.
Every diameter has a staggered pair: 19x8.5 with 19x9.5, 20x8.5 with 20x9.5, and 22x9 with 22x10.5.
Specifications
Brand: MRR Wheels
Model: HR3
Construction: Flow forged (also called flow formed or rotary forged)
Warranty: One year against defects in materials and workmanship
Sizes and weight
Size
Weight (approx.)
19x8.5
27.6 lbs
19x9.5
27.1 lbs
20x8.5
29.5 lbs
20x9.5
29.5 lbs
22x9
35.5 lbs
22x10.5
36.9 lbs
Offsets by bolt pattern
Size
5x108 (CB 73.1)
5x112 (CB 66.6)
5x114.3 (CB 73.1)
5x120 (CB 72.6)
19x8.5
ET35
ET25, ET35, ET45
ET20, ET35
ET20, ET35
19x9.5
ET40
ET25, ET35, ET40, ET45
ET20, ET40
ET20, ET40
20x8.5
ET35
ET25, ET35, ET45
ET20, ET35
ET20, ET35
20x9.5
ET40
ET25, ET35, ET40, ET45
ET20, ET40
ET20, ET40
22x9
ET38
ET25, ET38
ET20, ET38
ET20, ET38
22x10.5
ET40
ET25, ET40
ET24, ET40
ET24, ET40
FAQ
Is the price per wheel or per set? The price shown is per wheel. Choose quantity 4 for a full set.
Is the HR3 a forged wheel? The HR3 is flow forged, also called flow formed. The center is cast, then the barrel is spun and stretched under heat and pressure, which makes the barrel lighter and stronger than a conventional cast wheel. It is not a fully forged monoblock wheel. For fully forged options, see the MRR Forged Series.
What does PCD | ET | CB mean? PCD is the bolt pattern, ET is the offset in millimeters and CB is the center bore in millimeters. For example, 5x114.3 | 35 | 73.1 means a 5x114.3 bolt pattern, +35 mm offset and 73.1 mm center bore.
Do I need hub centric rings? If your vehicle hub is smaller than the wheel center bore, use hub centric rings sized to your hub.
Will the HR3 fit my car? Fitment depends on bolt pattern, offset, hub size and brake clearance. Contact us with your year, make and model and we will confirm the right size and offset.
Which center cap does the HR3 use? A 64.5 mm center cap with a 55 mm logo (shop caps).
What is the warranty? One year from the date of purchase against defects in materials and workmanship. Please inspect your wheels before mounting tires. Full terms are on our warranty page.
