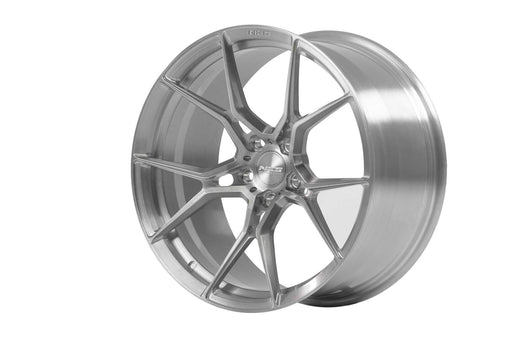

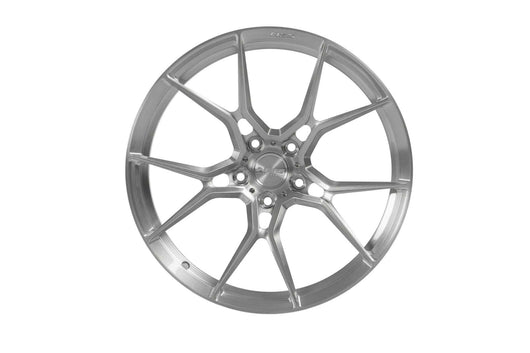

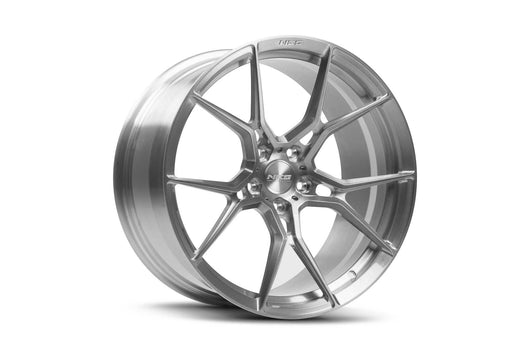

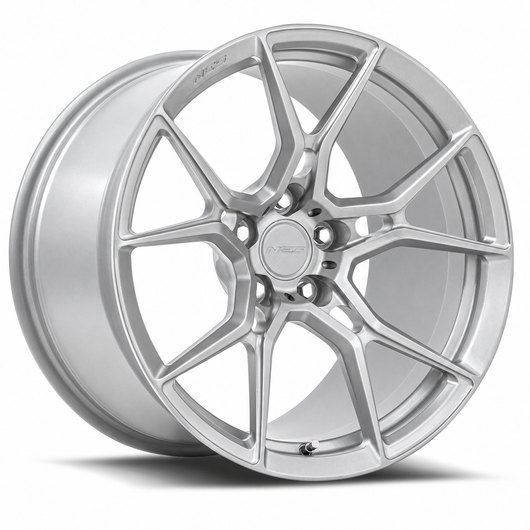

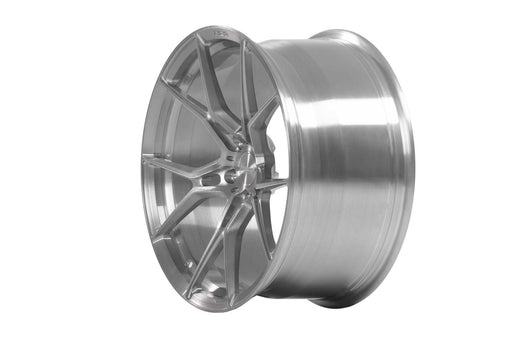

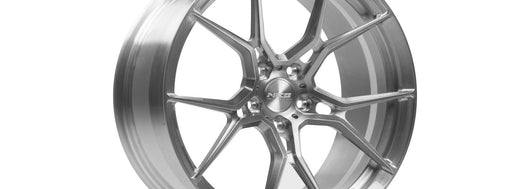

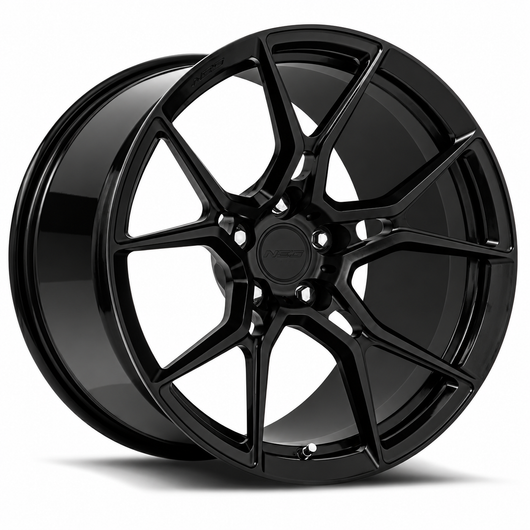

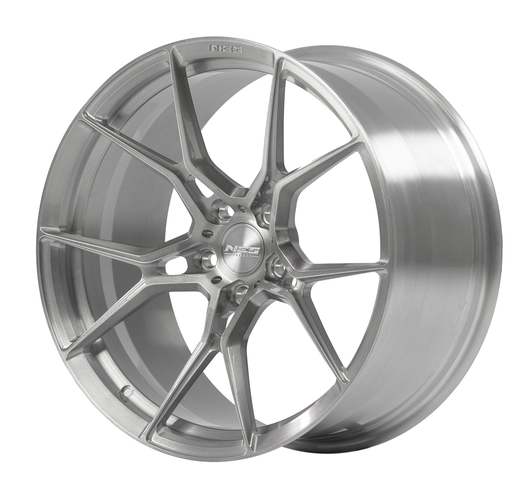

The NES FG-08 is a one piece monoblock forged wheel from NES Forged, with a split 5 spoke design. It is machined from a forged block of 6061 T6 aerospace aluminum, with a billet center crest and weight reduction pocketing. It comes in 18, 19, 20, 21 and 22 inch diameters and seven finishes: Gloss Black, Matte Black, Gloss Bronze, Matte Bronze, Silver, Brushed Clear and Gloss Gun Metal.
Width, offset and bolt pattern are built to your vehicle. After you order, we confirm the full specification with you before production.
Specifications
-
Brand: NES Forged
-
Model: FG-08
-
Series: NES Forged Series
-
Construction: One piece monoblock, forged 6061 T6 aluminum
-

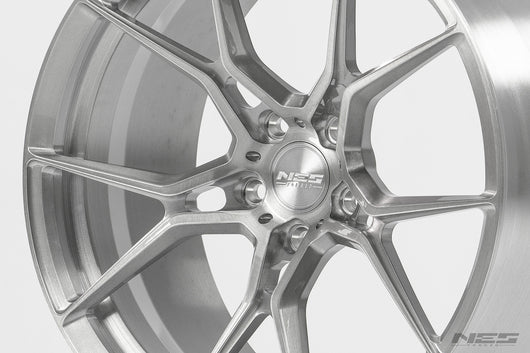

Design: Split 5 spoke with billet center crest and weight reduction pocketing (included)
-
Face profile: Concave, deep concave or super deep concave, depending on width and offset
-
Diameters: 18, 19, 20, 21 and 22 inch
-
Widths: 8.5 to 12 inch
-

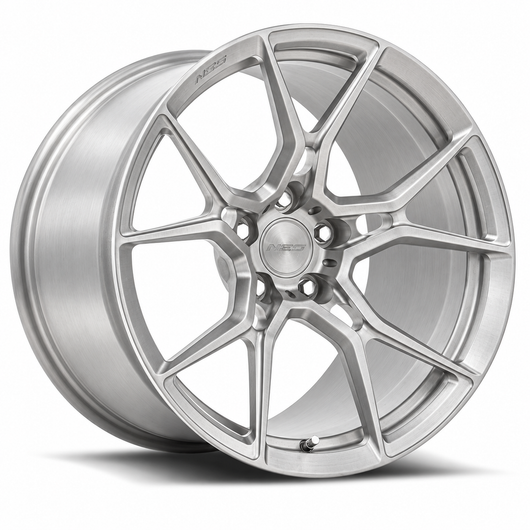

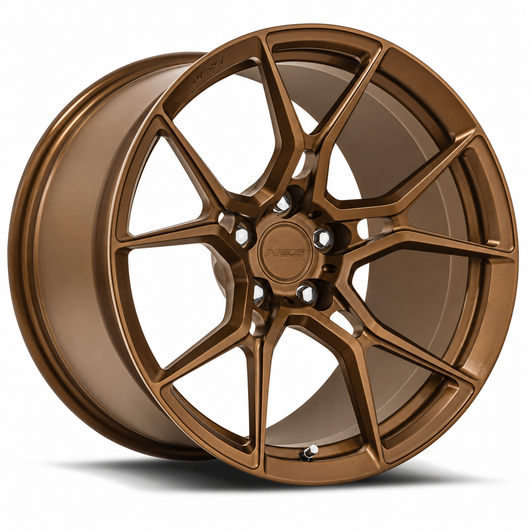

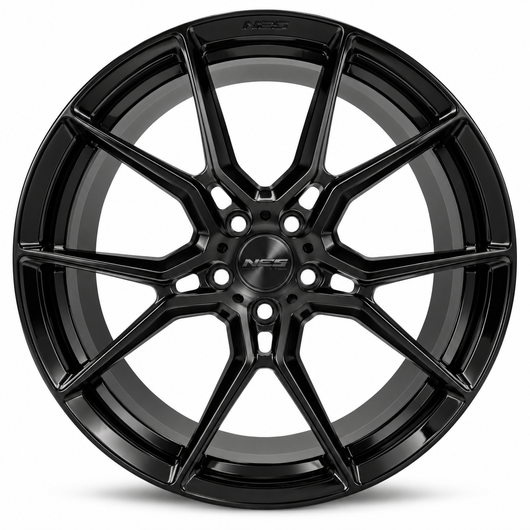

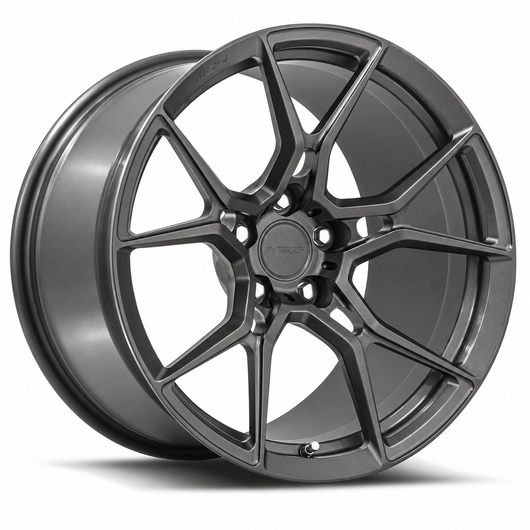

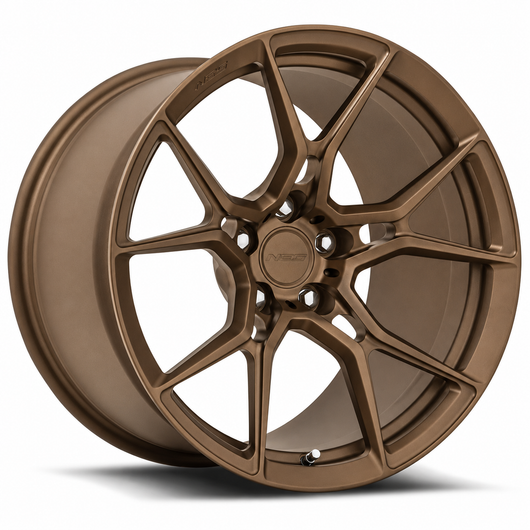

Finishes: Gloss Black, Matte Black, Gloss Bronze, Matte Bronze, Silver, Brushed Clear, Gloss Gun Metal
-
Width, offset and bolt pattern: Built to your vehicle
-
Build time: 8 to 10 weeks, made to order
-
Warranty: One year against defects in materials and workmanship
Price per wheel
Brushed Clear costs $150 more per wheel than the other finishes.
| Diameter |
Price per wheel |
Brushed Clear |
| 18 inch |
$1,100 |
$1,250 |
| 19 inch |
$1,200 |
$1,350 |
| 20 inch |
$1,300 |
$1,450 |
| 21 inch |
$1,400 |
$1,550 |
| 22 inch |
$1,500 |
$1,650 |
FAQ
Is the NES FG-08 fully forged?
Yes. The FG-08 is a one piece monoblock wheel. The entire wheel is machined from a single forged 6061 T6 aluminum block. A flow forged wheel, by contrast, has a cast center with a pressure formed barrel.
How much does the NES FG-08 cost?
From $1,100 per wheel in 18 inch to $1,500 per wheel in 22 inch. Brushed Clear adds $150 per wheel. Choose quantity 4 for a full set.
How long does it take to build the NES FG-08?
Build time is 8 to 10 weeks. Every NES FG-08 is made to order for your vehicle, and production starts once we confirm your full specification with you.
What widths, offsets and bolt patterns are available?
Widths run from 8.5 to 12 inch, and each size has its own offset range. Bolt patterns are machined to your vehicle, with 5 lug patterns from 5x100 to 5x150 depending on size. See the NES forged monoblock size chart, or contact us with your year, make and model and we will recommend the right specification.
Will the NES FG-08 fit my car?
Each set is built to your bolt pattern and offset. Contact us with your year, make and model and we will confirm hub size and brake clearance before production.
What is the warranty and return policy?
One year from the date of purchase against defects in materials and workmanship. Full custom forged orders are final sale. Full terms are on our warranty page.
